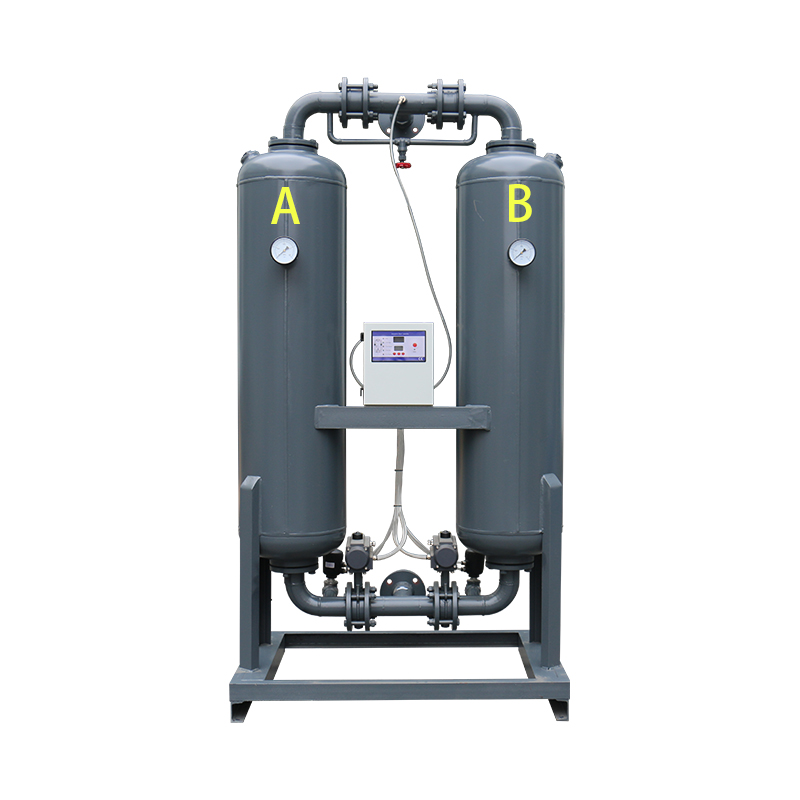

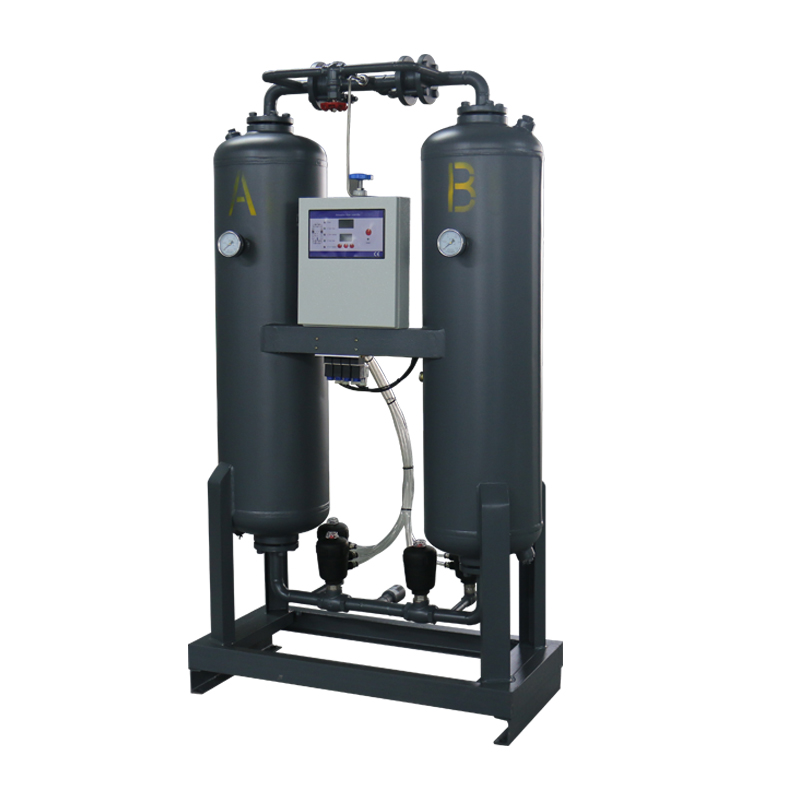

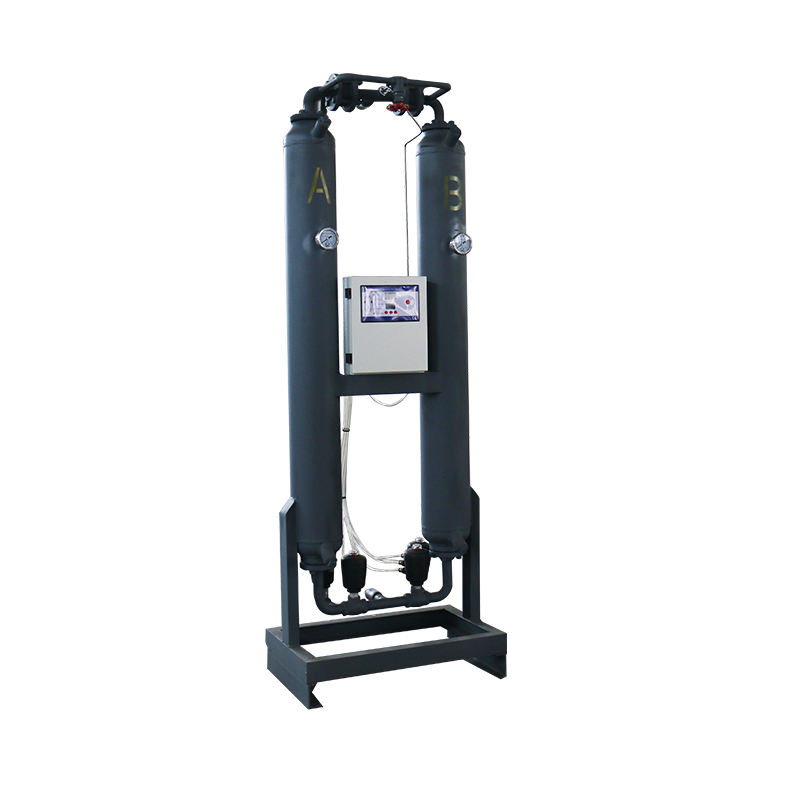

SRD micro heat adsorption dryer

Micro-heat regeneration adsorption dryer is a dehumidification and purification device that uses micro-heat regeneration method to adsorb and dry compressed air according to the principle of pressure swing adsorption.

Micro-heat regeneration adsorption dryer (hereinafter referred to as micro-heat adsorption dryer), has the advantages of both heating regeneration and heat less regeneration, adopts a slight heating method for the regeneration gas, thereby reducing the regeneration gas consumption, and because the regeneration is more thorough,it can prolong The tower body switching cycle is increased.Under normal operating conditions,the dew point of the air (under pressure)can be reduced to below -40℃, and the lowest can reach -70℃. It can provide oil-free, water-free and high-quality compressed air for a few applications that have high requirements on air quality especially for the cold northern regions and other gas-consuming occasions where the ambient temperature is below 0℃.

Micro-heat desiccant dryer adopts double-tower structure, one tower absorbs moisture in the air under a certain pressure, and the other tower uses a small part of dry air slightly higher than atmospheric pressure to regenerate the desiccant in the adsorption tower.Tower switching ensures continuous supply of dry com-pressed air.

On the basis of having all the advantages of the heat less regenerative adsorption dryer,the high-quality stainless steel finned U-shaped heating tube is used,which has uniform heating and high heat transfer coefficient,which can ensure long-term trouble-free operation.The optional Internet of Things component enables remote monitoring of dryers through mobile phones or other networked display terminals。
