TRH Series Refrigerated air Dryer (above TR15H)
The optional Internet of Things component enables remote monitoring of dryers through mobile phones or other networked display terminals.
Energy saving: The aluminum alloy three-in-one heat ex changer design, the enlarged pre-cooling and re generator design, minimize the process loss of
cooling capacity, improve the recycling of cooling capacity, and increase the outlet temperature of compressed air at the same time, effectively reducing
product gas moisture content.
Efficient: The integrated heat exchange is equipped with deflector fins to make the compressed air uniform inside heat exchange, buit-in air-water sep-aration device and stainless steel fiter, water separation is morethorough.
Intelligent:Multi-channel temperature and pressure monitoring, real-time display of dew point temperature, automaticrecording of accumulated running time,Add compressor protection, display the real-timecurrent ofthe compressor, have self-diagnosis function, display the corresponding alarm code automat-
ically protects the equipment.
Environmental protection: In response to the International Montreal Protocol , all models of this series adopt R407C environmental protection The refrig-erant has zero damage to the atmosphere and meets the needs of the international market.
Stability: Standard configuration of constant pressure expansion valve, hot gas bypass valve, water volume regulating valve, adaptive to changes in operating conditions, and automatic antifreeze adjustment function.While saving energy, prolong the service life of equipment.
Product Parameter
| TR series refrigerated air dryer | Model | TR-15H | TR-20H | TR-25H | TR-30H | TR-40H | TR-50H | TR-60H | TR-80H | TR-100H |
| Max air volume | m3/min | 17 | 23 | 27 | 33 | 42 | 55 | 65 | 85 | 110 |
| Power supply | 33 | |||||||||
| Input power | KW | 4.35 | 5.55 | 6.58 | 7.2 | 10.55 | 12.87 | 13.1 | 16 | 21.7 |
| Air pipe connection | RC2-1/2'' | RC2'' | DN65 | DN80 | DN100 | |||||
| Evaporator type | Aluminum alloy plate | |||||||||
| Cooling type | Air-cooled, tube-fin type | |||||||||
| Refrigerant type | R407C/OptionalR513A | |||||||||
| Intelligent control and protection | ||||||||||
| Display interface | True color touch screen, ruaning status, dew point temperature display | |||||||||
| Anti-reczing protection | Automatic temperature control/Cooling water control valve | |||||||||
| Temperature control | Condensing temperature/dew point temperature automatic control | |||||||||
| Refrigcrant High volage protection | Temperature Sensor & Refrigerant Pressure Sensitive Intelligent Protection | |||||||||
| Refrigerant Low voltage protection | Temperature Sensor & Pressure Sensitive Intelligent Protection | |||||||||
| Remote control | Configure remote connection dry contact,RS485 expansion interface (remarks required for order) | |||||||||
| Total Weight | KG | 180 | 210 | 350 | 420 | 550 | 680 | 780 | 920 | 1150 |
| Dimension L*W*H (mm) | 1000*850*1100 | 1100*900*1160 | 1215*950*1230 | 1425*1000*1480 | 1575*1100*1640 | 1630*1150*1760 | 1980*1450*1743 | 2055*1450*1743 | 2585*1500*1960 | |

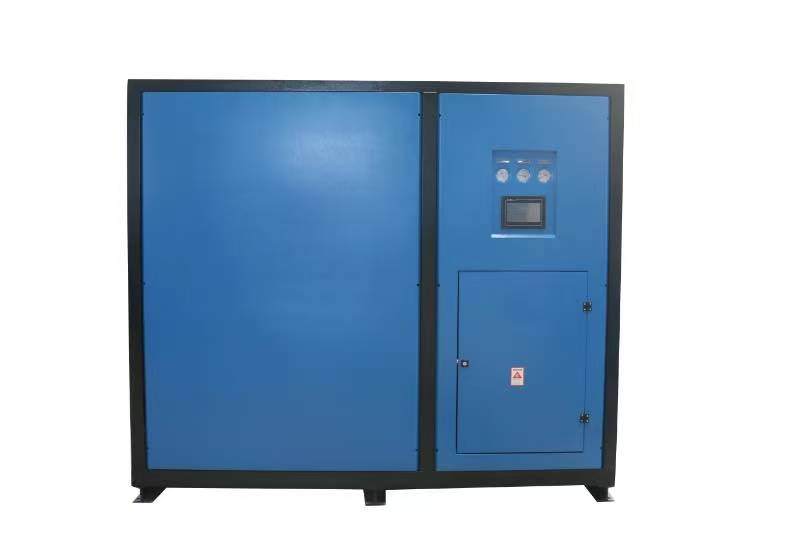

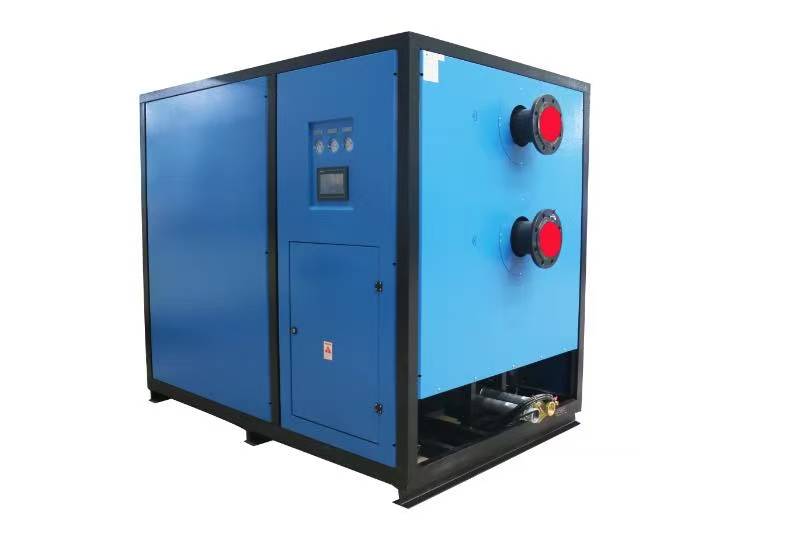

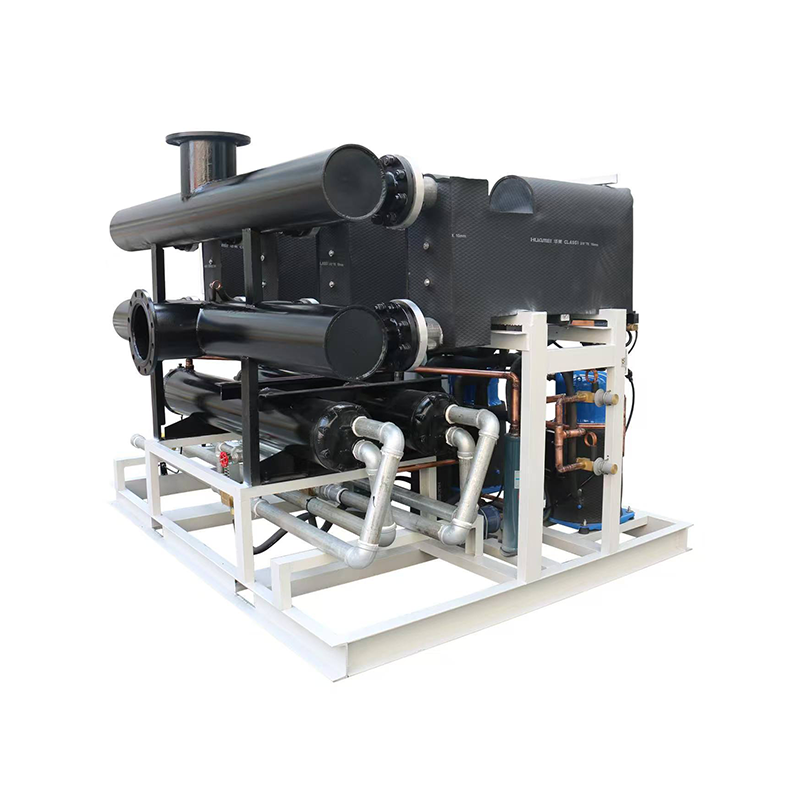

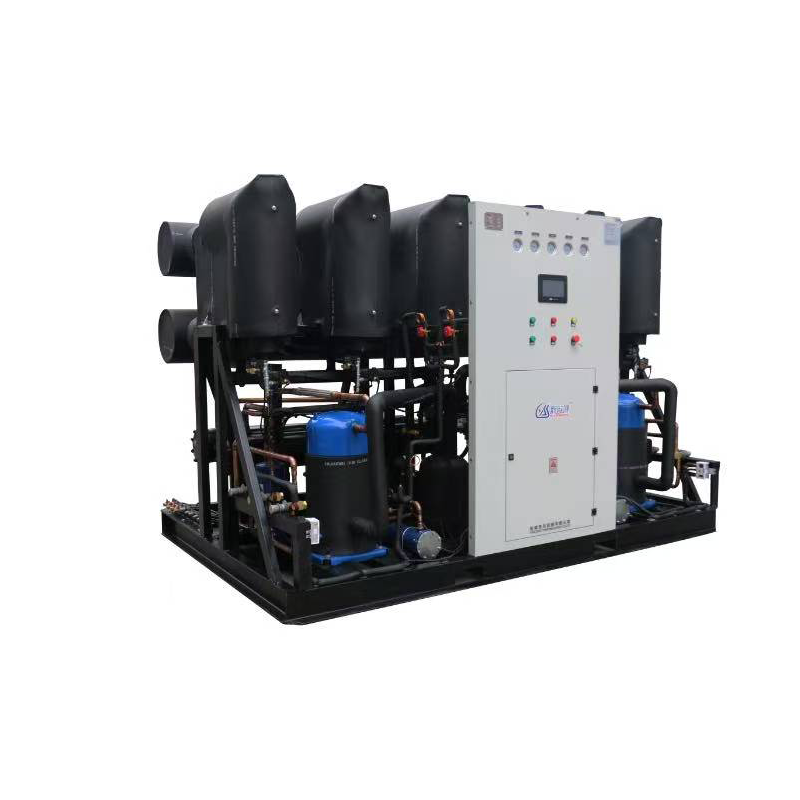

Photos (Color can be customized)
