Best Compressed Air Dryer For Sale Desiccant Combined Air Dryer System SMD-01 Series

Short Description:

The combined air dryer is usually a combination of a refrigerated dryer and a micro-heat regenerative adsorption dryer. The compressed air removes most of the water through the refrigerated dryer, and the condensed oil mist is filtered through the built-in A-level filter, and then enters the micro-heat adsorption dryer. The combined dryer is more energy-saving and consumes less air. , and more effectively achieve the rated dew point.

Send email to us

Product Detail

Product Tags

Product Parameters

SMD Series	Model	SMD01	SMD02	SMD03	SMD06	SMD08	SMD10	SMD12	SMD15	SMD20	SMD25	SMD30	SMD40	SMD50	SMD60	SMD80	SMD100	SMD120	SMD150
Max. air volume	m³/min	1.2	2.4	3.8	6.5	8.5	11.5	13.5	17	23	27	34	45	55	65	85	110	130	155
Power supply		220V/50Hz					380V/50Hz
Input power	KW	1.55	1.73	1.965	3.479	3.819	5.169	5.7	8.95	11.75	14.28	16.4	22.75	28.06	31.1	40.02	51.72	62.3	77.28
Air pipe connection		RC1"			RC1-1/2"	RC2"			DN65	DN80			DN100		DN125	DN150			DN200
Total Weight	KG	181.5	229.9	324.5	392.7	377.3	688.6	779.9	981.2	1192.4	1562	1829.3	2324.3	2948	3769.7	4942.3	6367.9	7128	8042.1
Dimension	L	880	930	1030	1230	1360	1360	1480	1600	1700	1800	2100	2250	2360	2500	2720	2900	3350	3350
	W	670	700	800	850	1150	1150	1200	1800	1850	1800	2000	2350	2435	2650	2850	3150	3400	3550
	H	1345	1765	1500	1445	2050	2050	2050	2400	2470	2540	2475	2600	2710	2700	2860	2800	3400	3500

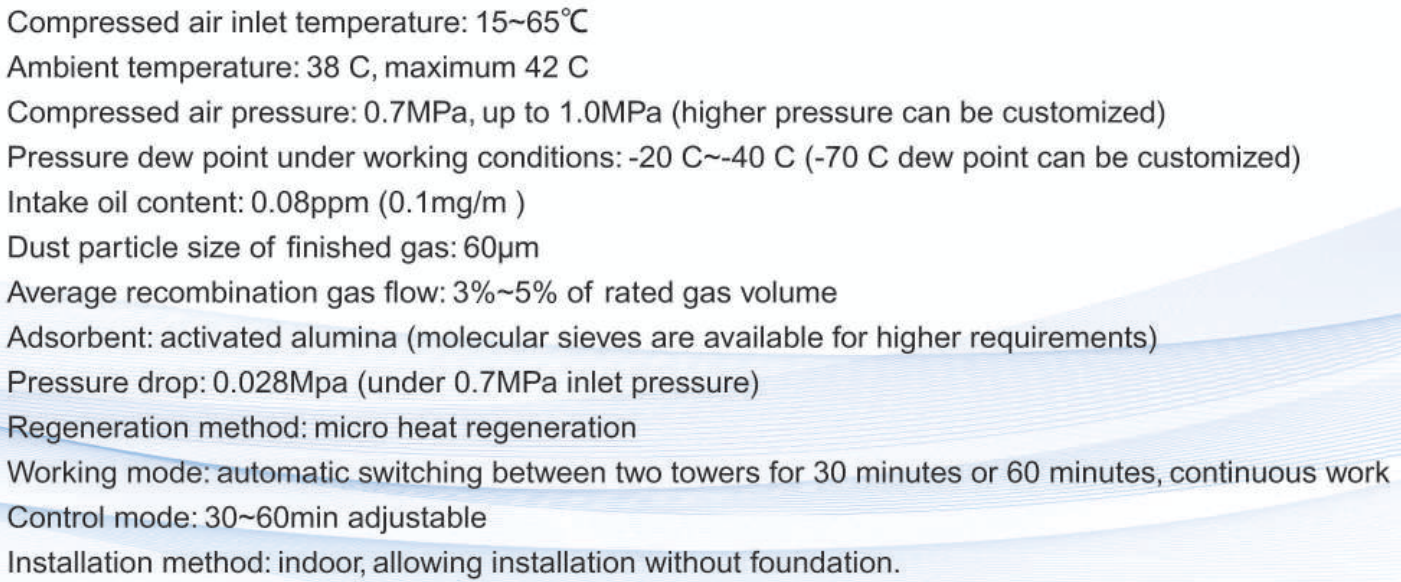

SMD Series Condition

Product Features

The combined dryer is usually a combination of a refrigerated dryer and a micro-heat regenerative adsorption dryer. The compressed air removes most of the water through the refrigerated dryer, and the condensed oil mist is filtered through the built-in A-level filter, and then enters the micro-heat adsorption dryer. The combined dryer is more energy-saving and consumes less air. , and more effectively achieve the rated dew point.

Among them, the cold dryer part adopts high-efficiency and energy-saving aluminum alloy plate replacement cold dryer, so that the volume of the whole machine can be effectively controlled, and it can prevent secondary pollution and protect the adsorbent. The compressed air can have more time to contact with the adsorbent for deep adsorption drying. The design of the large capacity of the adsorption bed also further reduces the pressure drop of the combined dryer and reduces the loss of compressed air.

The Internet of Things component is optional, and the remote monitoring function of the dryer can be realized through a mobile phone or other networked display terminals.

FAQ

1. Are you a factory or a trading company?

A: We are factory, and We have the right to export any country independently

2. Do your company accept ODM & OEM?

A: Yes, of course. We accept full ODM & OEM.

3. How does a refrigerated air dryer remove moisture from compressed air?

A: As the air cools, excess water vapor condenses back into a liquid. The liquid collects in a water trap and is removed through an automatic drain valve.

3.What is a refrigerated air dryer used for?

A: A refrigerant air dryer is a specific type of compressed air dryer that is used to remove moisture from compressed air, which always contains water.

4. How does a refrigerated air dryer remove moisture from compressed air?

A: As the air cools, excess water vapor condenses back into a liquid. The liquid collects in a water trap and is removed through an automatic drain valve.

5. How long will you take to arrange the goods?

A: For normal voltages,we can delivery the goods within 7-15 days. For other electricity or other customized machines, we will delivery within 25-30 days.
