TRH Series Refrigerated air Dryer (above TR15H)
Energy saving: The aluminum alloy three-in-one heat exchanger design, the enlarged pre-cooling and regenerator design, minimize the process loss of
cooling capacity, improve the recycling of cooling capacity, and increase the outlet temperature of compressed air at the same time, effectively reducing
product gas moisture content.
Efficient: The integrated heat exchanger is equipped with deflector fins to make the compressed air uniform inside heat exchange, built-in air-water separation device and stainless steel filter, water separation is more thorough.
Intelligent: Mult-channel temperature and pressure monitoring, real-time display of dew point temperature,automatic recording of accumulated running time,It has self-diagnosis function, displays corresponding alarm codes, and automatically protects the equipment.
Environmental protection: In response to the International Montreal Agreement, all models of this series adopt R134a and R410a for environmental protectionThe refrigerant has zero damage to the atmosphere and meetsthe needs of the international market.
Stability: Standard configuration of constant pressure expansion valve, standard configuralion of intelli-gent temperature control, laboratory testwhen the inlettemperature reaches 65°C and the ambient tem-perature reaches 42℃, it still operates stably, and it also has dual antifreeze protection of temperature and pressure. While saving energy, prolong the service lfe of equipment.
Installation environment no sunlight, no rain, good ventilation, installed on a horizontal hard foundation, no obvious dust and flying catkins
Product Parameter
| TR series refrigerated Air dryer | Model | TR-15H | TR-20H | TR-25H | TR-30H | TR-40H | TR-50H | TR-60H | TR-80H | TR-100H |
| Max air volume | m3/min | 17 | 23 | 27 | 33 | 42 | 55 | 65 | 85 | 110 |
| Power supply | 380V/50HZ | |||||||||
| Input power | KW | 4.35 | 5.55 | 6.58 | 7.2 | 10.55 | 12.86 | 13.1 | 16 | 21.7 |
| Air pipe connection | RC2-1/2'' | RC2'' | DN65 | DN80 | DN100 | |||||
| Evaporator type | Aluminum alloy plate | |||||||||
| Cooling type | Air-cooled, tube-fin type | |||||||||
| Refrigerant type | R407C/OptionalR513A | |||||||||
| Intelligent control and protection | ||||||||||
| Display interface | True color touch screen, ruaning status, dew point temperature display | |||||||||
| Anti-reczing protection | Automatic temperature control/antifreeze solenoid valve | |||||||||
| Temperature control | Condensing temperature/dew point temperature automatic control | |||||||||
| Refrigcrant High volage protection | Temperature Sensor & Refrigerant Pressure Sensitive Intelligent Protection | |||||||||
| Refrigerant Low voltage protection | Temperature Sensor & Pressure Sensitive Intelligent Protection | |||||||||
| Remote control | Configure remote connection dry contact,RS485 expansion interface (remarks required for order) | |||||||||
| Total Weight | KG | 180 | 210 | 350 | 420 | 550 | 680 | 780 | 920 | 1150 |
| Dimension L*W*H (mm) | 1000*850*1100 | 1100*900*1160 | 1215*950*1230 | 1425*1000*1480 | 1575*1100*1640 | 1630*1150*1760 | 1980*1450*1743 | 2055*1450*1743 | 2485*1500*1960 | |

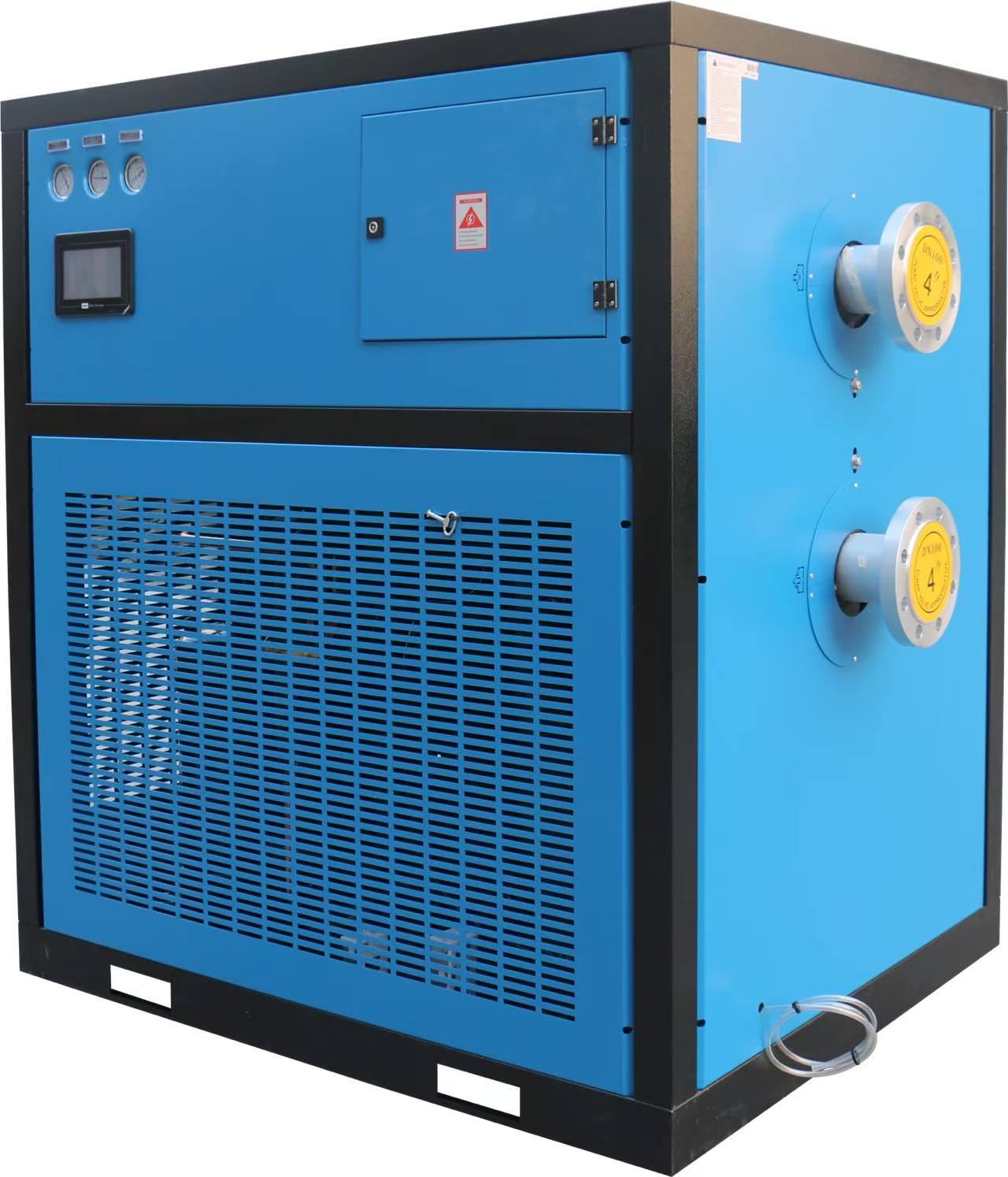

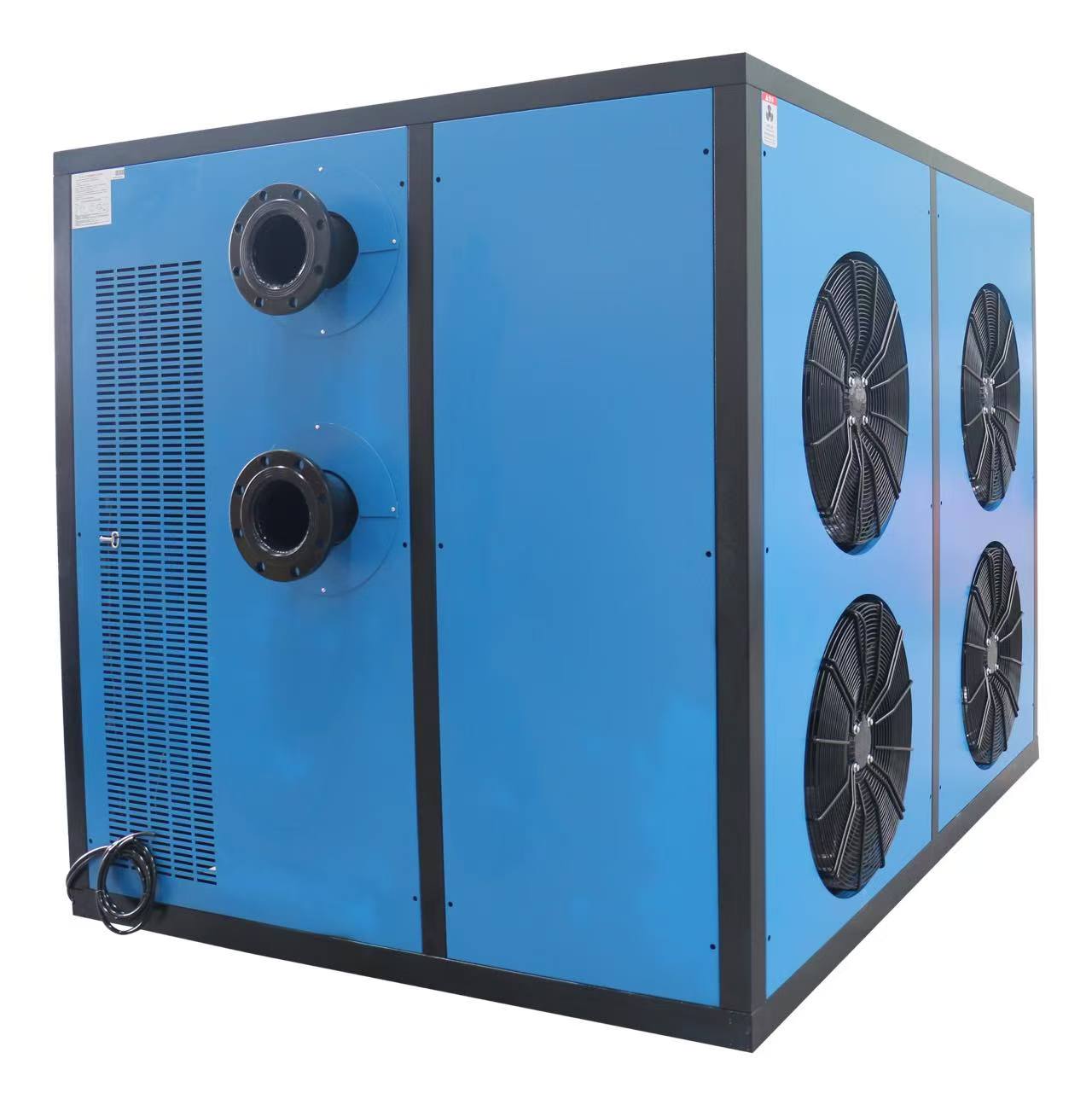

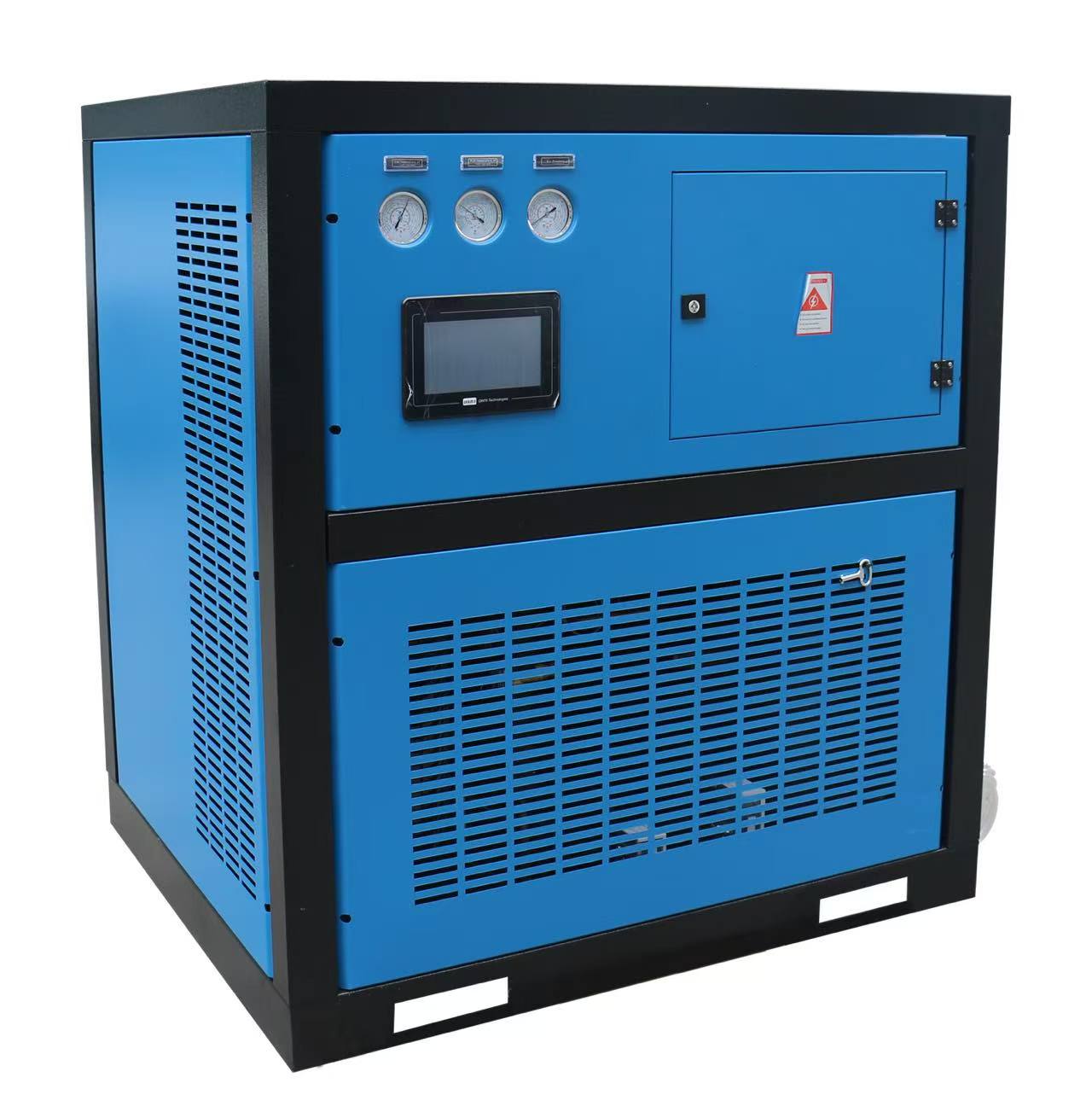

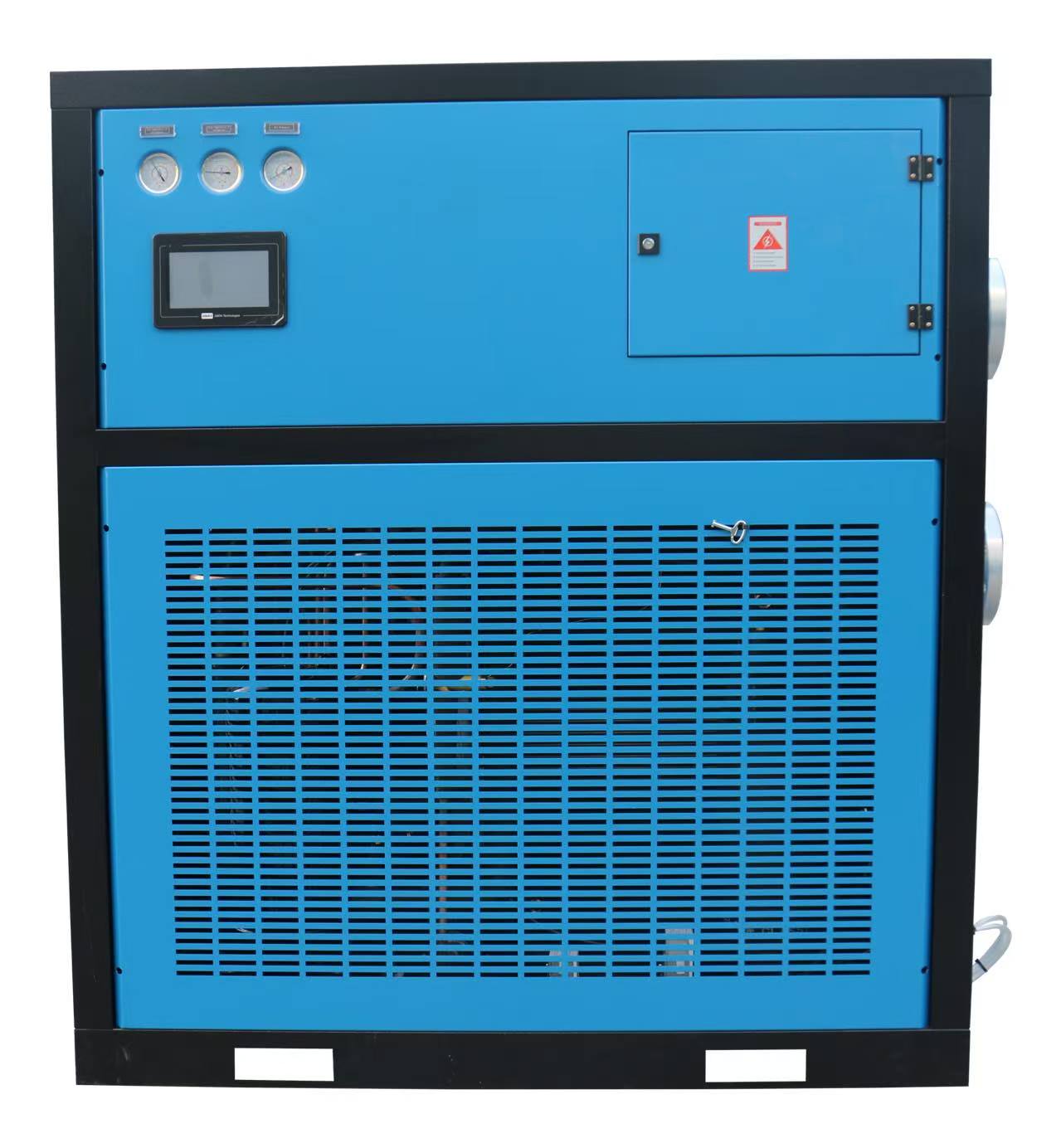

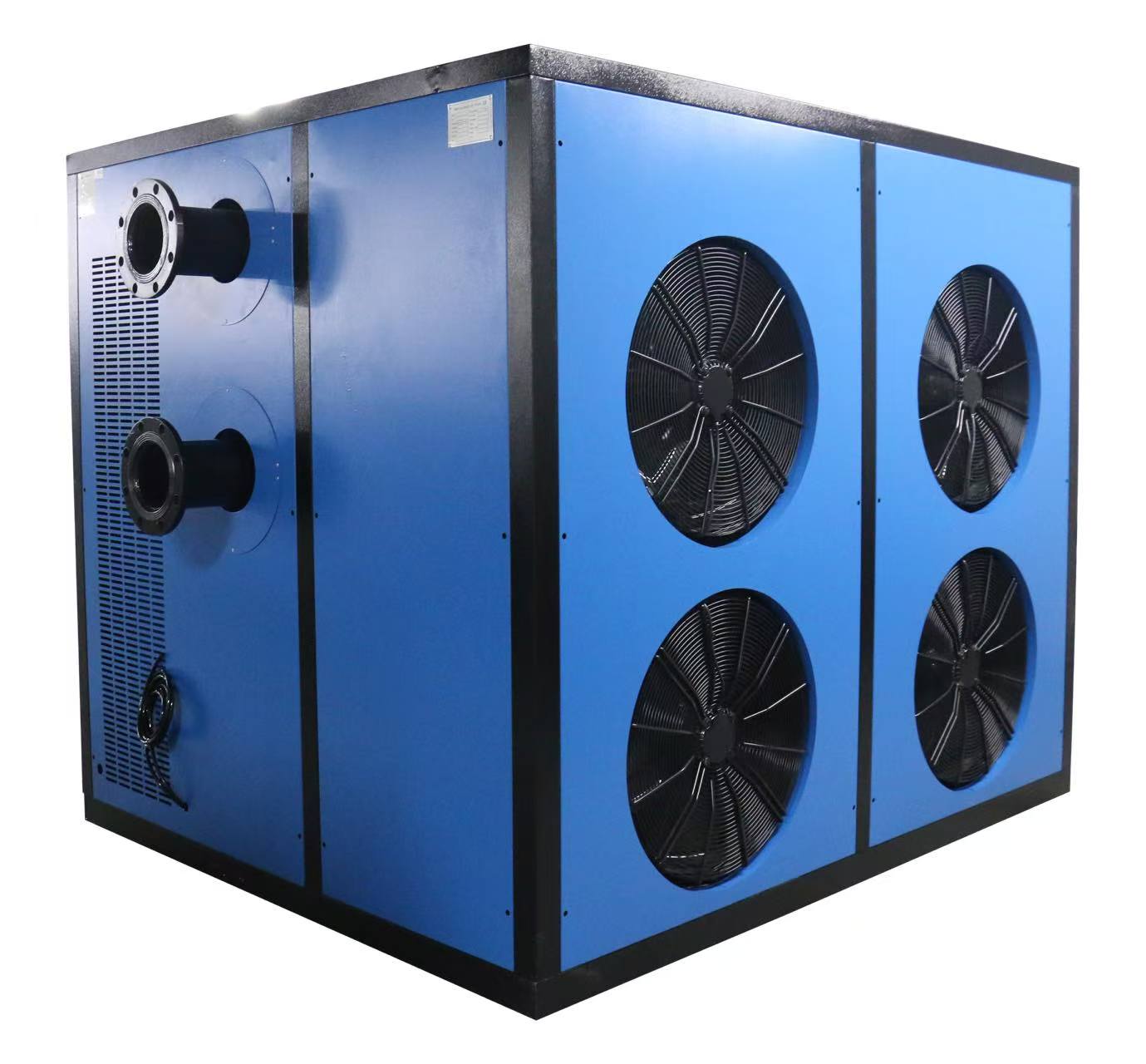

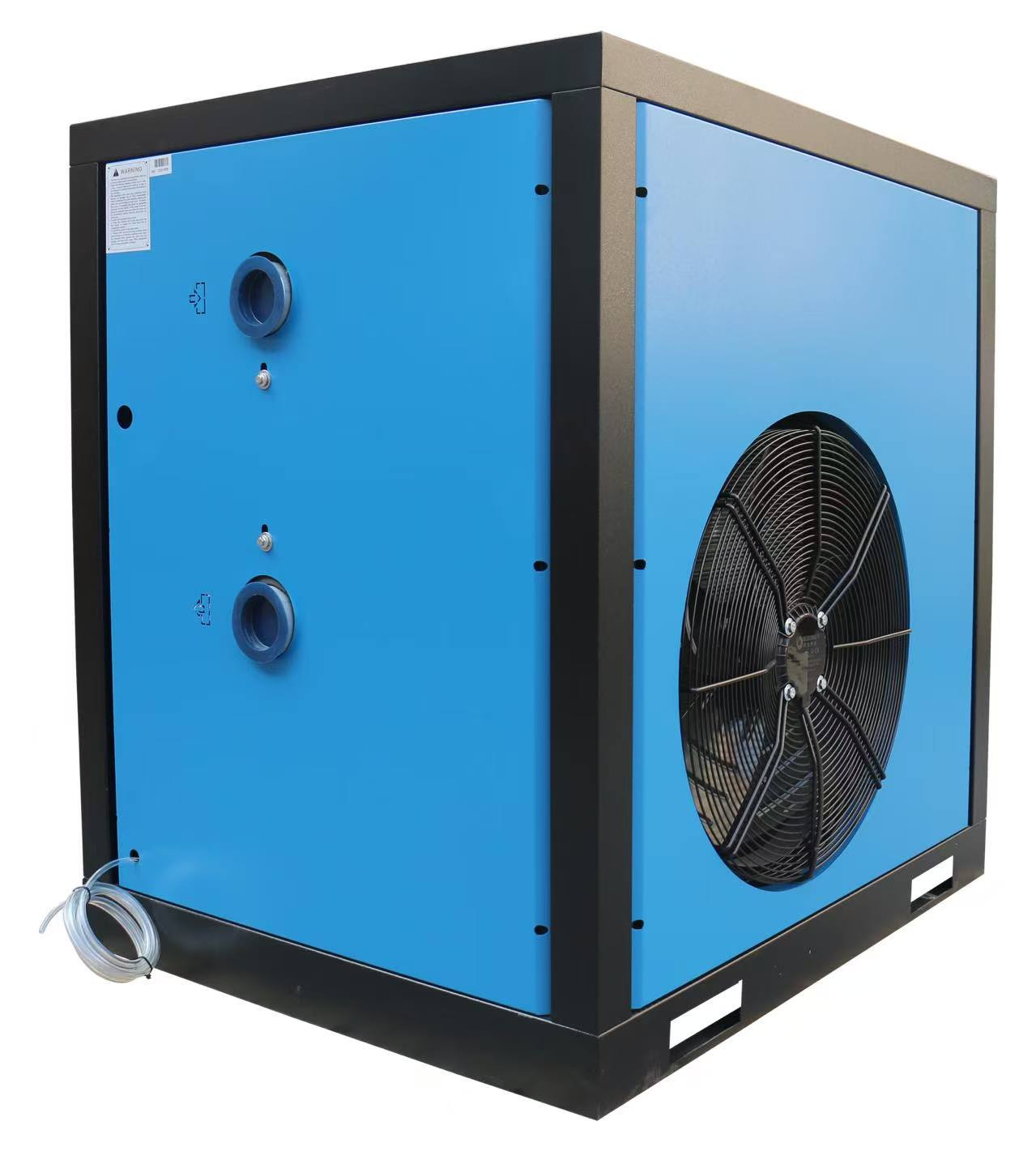

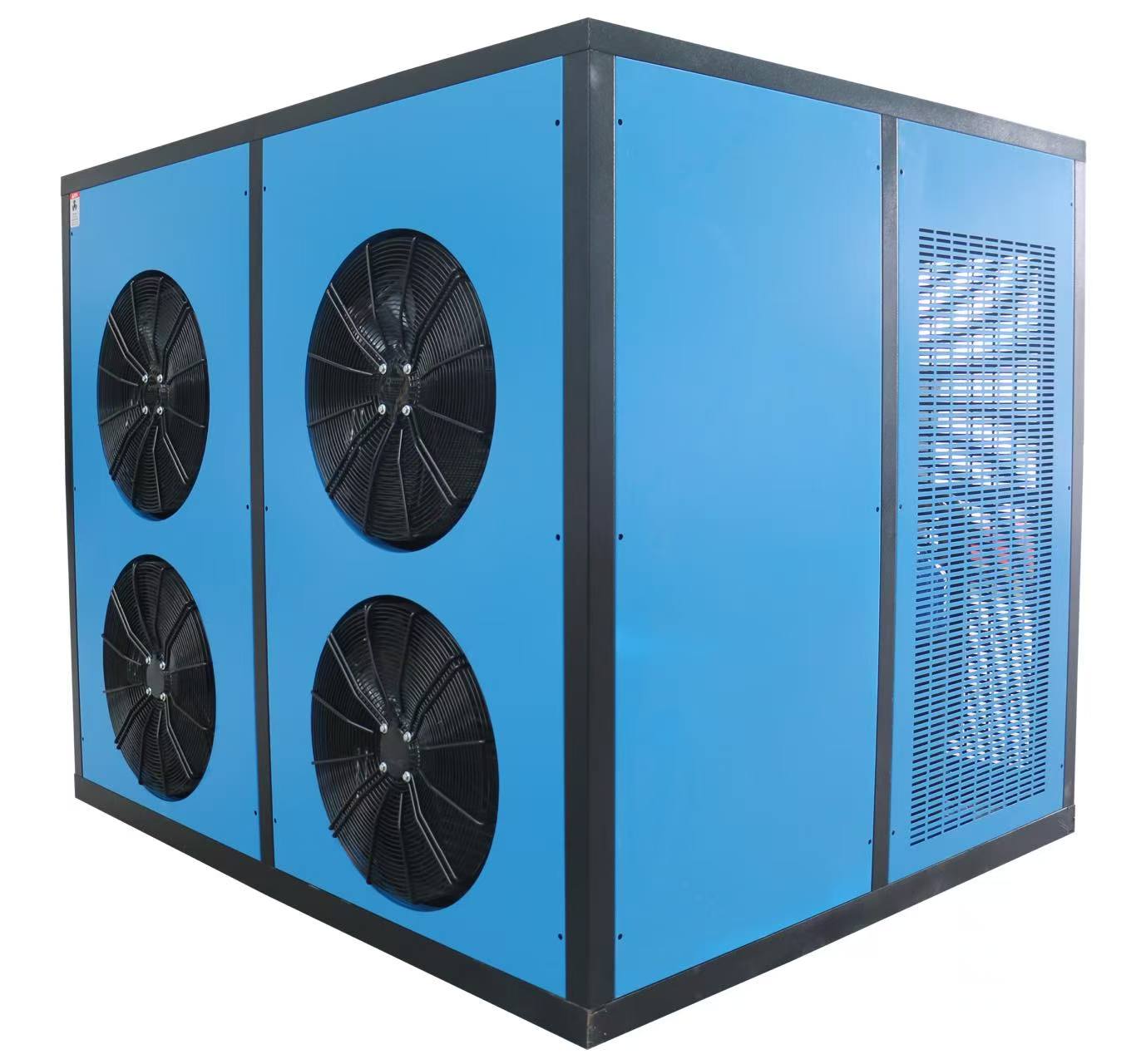

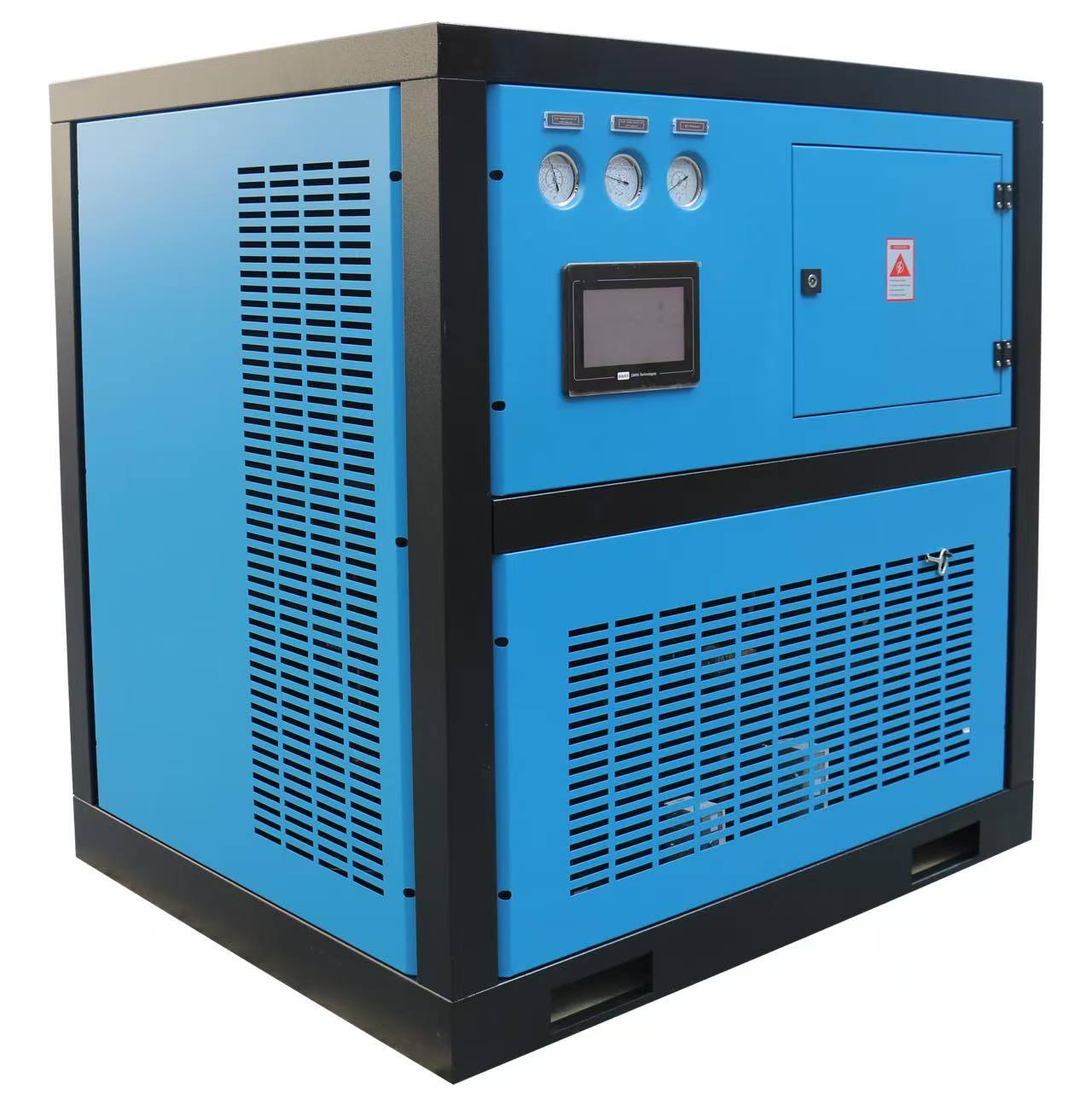

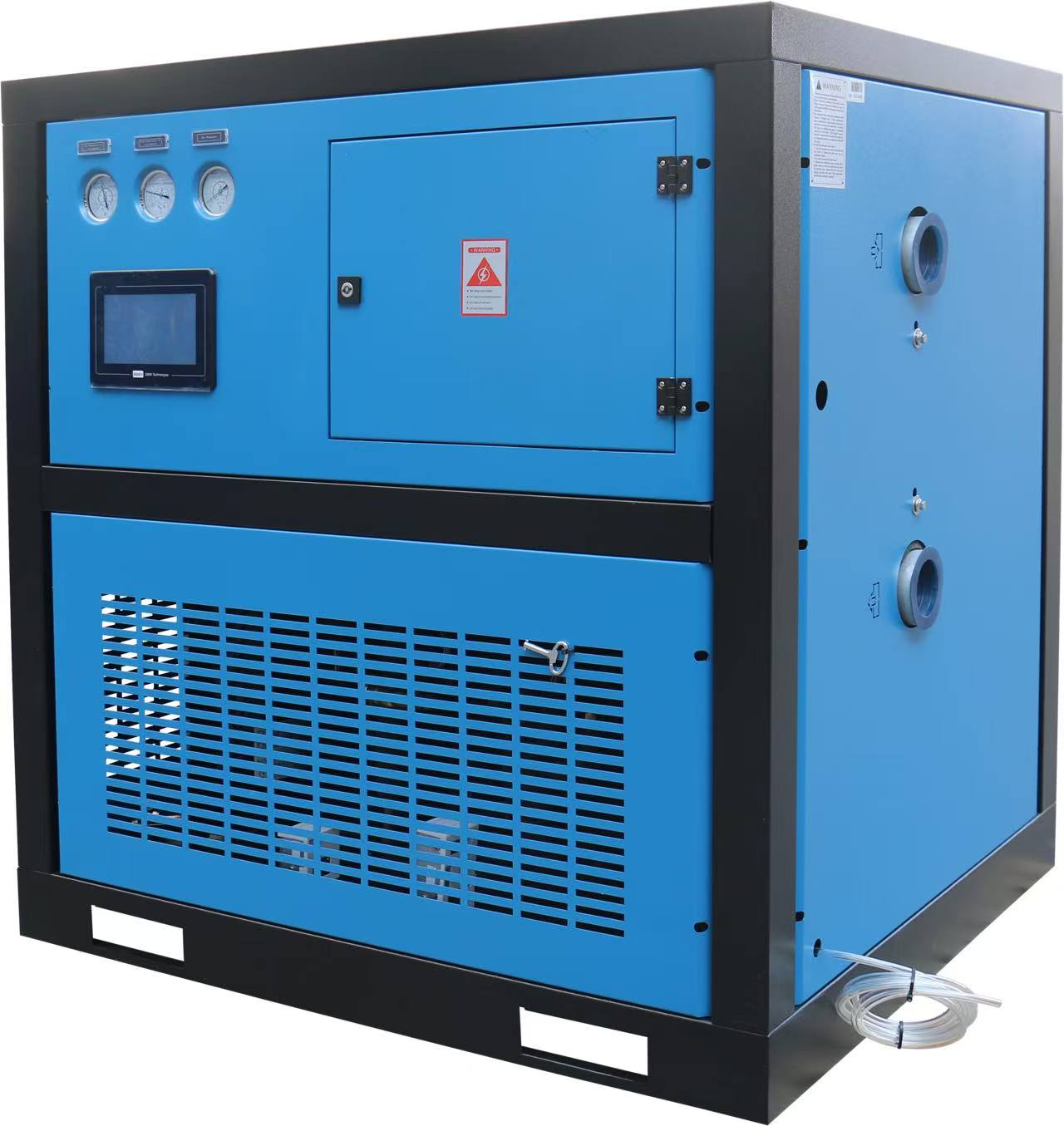

Photos (Color can be customized)
