Air Compressor Dryer Freeze Drying Equipment Tr-01

Short Description:

1. Compact structure and small size

The plate heat exchanger has a square structure and occupies a small space. It can be flexibly combined with refrigeration components in the equipment without excessive space waste.

2. The model is flexible and changeable

The plate heat exchanger can be assembled in a modular fashion, that is, it can be combined into the required processing capacity in a 1+1=2 manner, which makes the design of the whole machine flexible and changeable, and can more effectively control the raw material inventory.


Product Detail

Product Tags

Product Parameters

Air pipe connection RC3/4”
Evaporator type Aluminum alloy plate
Refrigerant  model R134a
System max pressure drop 3.625 PSI
Display interface LED dew point display, LED alarm code display,operation status indication
Intelligent anti-freezing protection Constant pressure expansion valve and compressor automatic start/stop
Temperature control Automatic control of condensing temperature/dew point temperature
High voltage protection Temperature sensor
Low voltage protection Temperature sensor and inductive intelligent protection
Weight(kg) 34
Dimensions L × W × H(mm) 480*380*665
Installation environment No sun, no rain, good ventilation, device level hard ground, no dust and fluff

TR Series Condition

1. Ambient temperature:  38℃, Max. 42℃
2. Inlet temperature: 38℃, Max. 65℃
3. Working pressure: 0.7MPa, Max.1.6Mpa
4. Pressure dew point: 2℃~10℃(Air dew point:-23℃~-17℃)
5. No sun, no rain, good ventilation, device level hard ground, no dust and fluff

TR Series Refrigerated Air Dryer

TR series refrigerated
Air dryer
Model TR-01 TR-02 TR-03 TR-06 TR-08 TR-10 TR-12
Max. air volume m3/min 1.4 2.4 3.8 6.5 8.5 11 13.5
Power supply 220V/50Hz
Input power KW 0.37 0.52 0.73 1.26 1.87 2.43 2.63
Air pipe connection RC3/4" RC1" RC1-1/2" RC2"
Evaporator type Aluminum alloy plate
Refrigerant model R134a R410a
System Max.
pressure drop
0.025
Intelligent control and protection
Display interface LED dew point display, LED alarm code display,operation status indication
Intelligent anti-freezing protection Constant pressure expansion valve and compressor automatic start/stop
Temperature control Automatic control of condensing temperature/dew point temperature
High voltage protection Temperature sensor
Low voltage protection Temperature sensor and inductive intelligent protection
Energy saving KG 34 42 50 63 73 85 94
Dimension L 480 520 640 700 770 770 800
W 380 410 520 540 590 590 610
H 665 725 850 950 990 990 1030

1. Energy saving:
The aluminum alloy three-in-one heat exchanger design minimizes the process loss of the cooling capacity and improves the recycling of the cooling capacity. Under the same processing capacity, the total input power of this model is reduced by 15-50%

2. High Efficiency:
The integrated heat exchanger is equipped with guide fins to make the compressed air evenly exchange heat inside, and the built-in steam-water separation device is equipped with a stainless steel filter to make the water separation will be more thoroughly.

3. Intelligent:
Multi-channel temperature and pressure monitoring, real-time display of dew point temperature, automatic recording of accumulated running time, self-diagnosis function, display of corresponding alarm codes, and automatic protection of equipment

4. Environmental protection:
In response to the International Montreal Agreement, this series of models all use R134a and R410a environmentally friendly refrigerants, which will cause zero damage to the atmosphere and meet the needs of the international market.

5. Stable:
It is equipped with a constant pressure expansion valve as standard, and is equipped with intelligent temperature control as standard. In the laboratory test, when the intake air temperature reaches 65°C and the ambient temperature reaches 42°C, it still runs stably. At the same time, it is equipped with temperature and pressure double antifreeze protection. While saving energy, it extends the service life of the equipment.

FAQ

1. Are you a factory or a trading company?
A: We are factory, and We have the right to export any country independently

2.What is the specific address of your company?
A: No.23, Fukang Road, Dazhong Industrial Park, Yancheng, Jiangsu, China

3. Do your company accept ODM & OEM?
A: Yes, of course. We accept full ODM & OEM.

4. What about the voltage of products? Can they be customized?
A: Yes, of course. The voltage can be customized according to your requirement.

5.Do your company offer spare parts of the machines?
A: Yes, of course, high quality spare parts are available in our factory.

6.What are your payment terms?
A: 30% T/T in advance, 70% T/T before delivery.

7. What payment ways do you accept?
A: T/T, Western Union

8. How long will you take to arrange the goods?
A: For normal voltages,we can delivery the goods within 7-15 days. For other electricity or other customized machines, we will delivery within 25-30 days.

Product Display

Air Dryer  TR-01 (4)
Air Dryer  TR-01 (7)
Air Dryer  TR-01 (2)
Air Dryer  TR-01 (9)
Air Dryer  TR-01 (6)
Air Dryer  TR-01 (8)

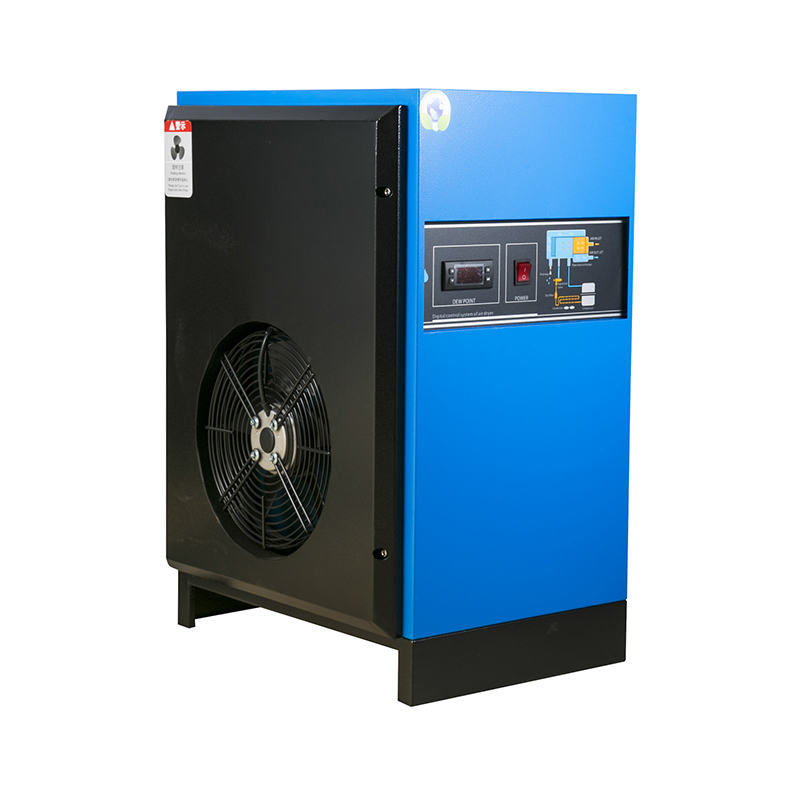

Air Dryer  TR-01 (3)
Air Dryer  TR-01 (5)
